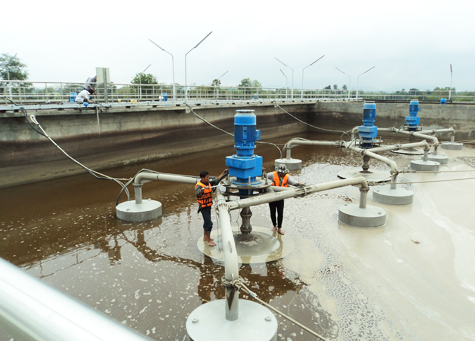

Surface Aerator


Low Speed Floated Type Surface Aerator

GENERATING SATISFACTION
Drive Agitator type or Flange type helical gear
Gear unit  Siemens from Germany
Power supply Motor 380V/3Phase/50Hz , Protection IP 55 , insulation class F
Structure
Impeller Type S : Conical type spiral open blade
Option Type T : Updraft cone shape and Turbine blade Impeller material Mild steel with epoxy coating
Option 1 Mild steel with hot dip galvanize
Option 2 Mild steel with fiberglass coating
Option 3 Stainless steel 304 for impeller type T
Option 4 Stainless steel 316 for impeller type T
Floats   3 floats made of mild steel with epoxy coating within polyurethane foam
Option 1 Mild steel with hot dip galvanize within polyurethane foam
Option 2 Mild steel with fiberglass coating within polyurethane foam
Option 3 Stainless steel 304 within polyurethane foam
Option 4 Stainless steel 316 within polyurethane foam
Frame Mild steel with epoxy coating
Option 1 Mild steel with hot dip galvanize
Option 2 Mild steel with fiberglass coating
Option 3 Stainless steel 304
Option 4 Stainless steel 316
Accessory   Adjustable impeller up-down with power screws
Oxygentransfer rate 1.5 Kg.O2/Hp/hr at standard condition

Surface Aerator
